• Year
  • 1965 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 175809
    • Brand: Defiant

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org

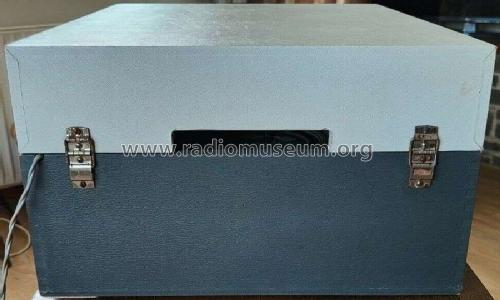

  • Model: Defiant MP5 - Co-operative Wholesale Society
  • Notes
  • Record reproducer fitted with BSR type UA14 record changer unit & TC8H cartridge.
  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
