30S-1

30S-1; Collins Radio (ID = 846459) RF-Ampl.

30S-1; Collins Radio (ID = 846460) RF-Ampl.

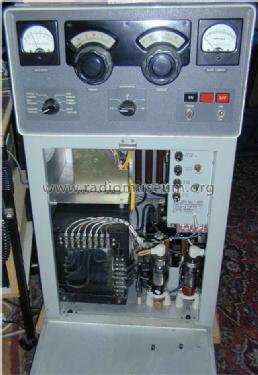

30S-1; Collins Radio (ID = 314599) RF-Ampl. 30S-1; Collins Radio (ID = 846903) RF-Ampl.
30S-1; Collins Radio (ID = 846904) RF-Ampl. 30S-1; Collins Radio (ID = 846905) RF-Ampl.
Use red slider bar for more.
30S-1; Collins Radio (ID = 314599) RF-Ampl.
Collins Radio: 30S-1 [RF-Ampl.] ID = 314599 425x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 30S-1, Collins Radio Company; Cedar Rapids (IA):
From manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Collins Radio Company; Cedar Rapids (IA)
Year: 1959–1961 ? Category: RF (Radio Frequency-) Amplifier
Valves / Tubes 4: 3B28 3B28 12AL5 4CX1000A
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: 30S-1 - Collins Radio Company; Cedar
Material Metal case
Shape Console with any shape - in general
Dimensions (WHD) 432 x 785 x 485 mm / 17 x 30.9 x 19.1 inch
Notes Bandwith 3.4 to 30 MHz. RF input 70 to 100 Watt for 1000 Watt PEP output.
Recommended by Collins as Power Amplifier for Transmitter 32S-3 or Transceiver KWM-2.

Bandbreite 3,4 bis 30 MHz. HF Ausgangsleistung 1000W PEP. Benötigt 70-100W am Eingang. Collins empfiehlt den 32S-3 Transmitter oder den KWM-2 Transceiver.
Net weight (2.2 lb = 1 kg) 72.5 kg / 159 lb 11.1 oz (159.692 lb)
Source of data -- Original-techn. papers.

Model page created by Rainer Feldmann. See "Data change" for further contributors.
