• Year
  • 1960 ?
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 120713

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 115/230 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 516F-2 - Collins Radio Company; Cedar
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 251 x 197 x 292 mm / 9.9 x 7.8 x 11.5 inch
  • Notes

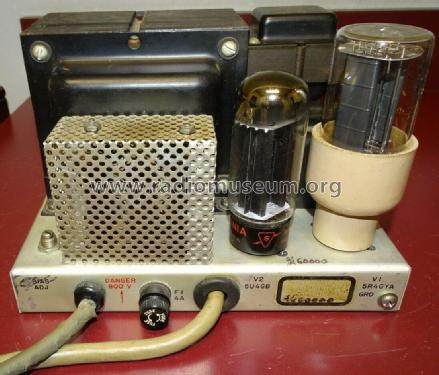

  • AC-Power-Supply matching Collins transmitters 32S-Series and tranceivers KWM-2/2A 6.3 Vac, 800 Vdc, 275 Vdc, -55 to -80 Vdc Bias voltage.
  • Net weight (2.2 lb = 1 kg)
  • 13.6 kg / 29 lb 15.3 oz (29.956 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Ottmar Rollmann. See "Data change" for further contributors.
