• Year
  • 1955/1956
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 132588
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

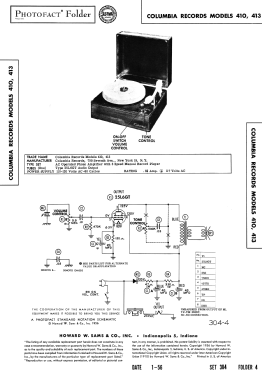

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Main principle
  • Audio-Amplification; 1 AF stage(s)
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Columbia 413 - CBS-Columbia Inc.; New York,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

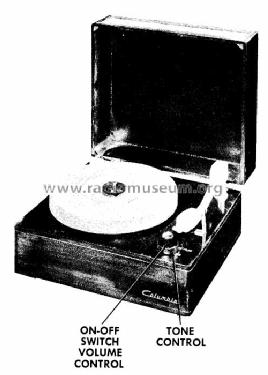

  • The Columbia Records models Columbia 410 and 413 are very simple AC operated phono amplifiers with 3 speed manual record player which use the same chassis. Model 410 has a normal loudspeker with 4" diameter and model 413 a oval loudspeaker with diameter 4" x 6". Also the volume control is different.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
