• Year
  • 1965 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 147654
    • Brand: Masterwork

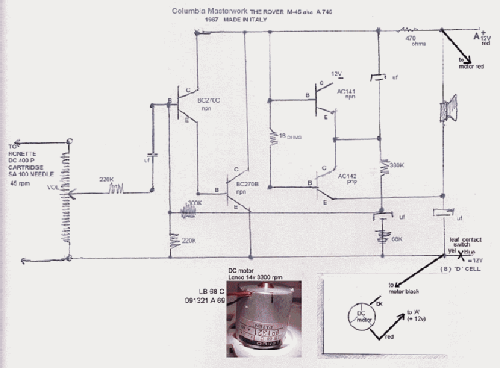

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • -1
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Dry Batteries / 8 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Masterwork The Rover A 745 - Columbia Records Sales Corp.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 10.5 x 9.63 x 3.5 inch / 267 x 245 x 89 mm
  • Notes
  • Masterwork The Rover A 745;
    Portable 45 rpm vertical disc record player, probably made in Italy.
