Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4

Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2526701) DIG/SAT Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2526706) DIG/SAT
Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2526702) DIG/SAT Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2526704) DIG/SAT
Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2526705) DIG/SAT Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2526703) DIG/SAT
Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2337933) DIG/SAT Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2337934) DIG/SAT
Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2337935) DIG/SAT Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2337936) DIG/SAT
Use red slider bar for more.

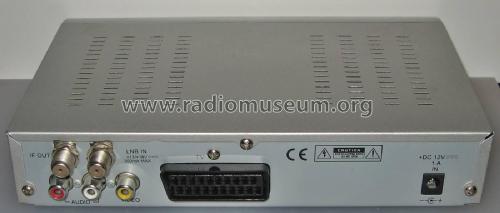

Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4; Comag Handels AG (ID = 2526701) DIG/SAT
Comag Handels AG: Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4 [DIG/SAT] ID = 2526701 1400x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4, Comag Handels AG (Silvercrest); Göppingen

Country:  Germany
Manufacturer / Brand:  Comag Handels AG (Silvercrest); Göppingen
Year: 2007 Category: Digital terrestrial, Internet and SAT receiver (also analogue)
Semiconductors (the count is only for transistors) Semiconductors present. IX2598 M3329C W9864G6 MX25L1606 LM358 AX1117 LM317 BD9851
Main principle PLL, Phase-locked loop
Wave bands SAT-IF
Details Radio Control (+Remote Wire etc)
Power type and voltage Powered by external power supply or a main unit. / DC 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Digitaler Satelliten-Receiver SL30/12 - RC: RG405 DS4 - Comag Handels AG Silvercrest;
Material Modern plastics (no Bakelite or Catalin)
Shape Book-shelf unit.
Dimensions (WHD) 215 x 45 x 155 mm / 8.5 x 1.8 x 6.1 inch
Notes

DVB-S Receiver, Ausgang analog über Cinch oder Scart-Anschluss, Farbnorm PAL/NTSC
Aspect ratio (Höhen-Seitenverhältnis): 4:3 Letterbox, 4:3 PanScan, 16:9
Stromversorgung über Steckernetzteil 220-240 V, 1 A.

Tuner: Sharp S7VZ0502A.

Zugehörige Fernbedienung Typ RG405 DS4.

Version 1.0, Stand 21.11.2007.

Net weight (2.2 lb = 1 kg) 0.660 kg / 1 lb 7.3 oz (1.454 lb)

Model page created by Manfred Rathgeb. See "Data change" for further contributors.



All listed radios etc. from Comag Handels AG (Silvercrest); Göppingen
Here you find 7 models, 7 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
