CEB Tape Machine

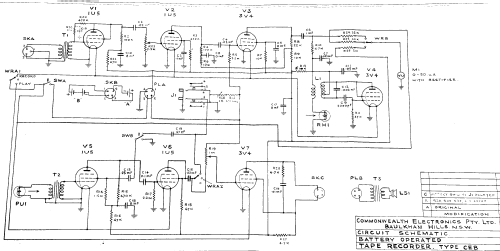

CEB Tape Machine ; Commonwealth (ID = 2364693) R-Player

CEB Tape Machine ; Commonwealth (ID = 2364694) R-Player
CEB Tape Machine ; Commonwealth (ID = 2364697) R-Player CEB Tape Machine ; Commonwealth (ID = 2364695) R-Player
CEB Tape Machine ; Commonwealth (ID = 2364696) R-Player CEB Tape Machine ; Commonwealth (ID = 2364699) R-Player
CEB Tape Machine ; Commonwealth (ID = 2349617) R-Player CEB Tape Machine ; Commonwealth (ID = 2348687) R-Player
Use red slider bar for more.
CEB Tape Machine ; Commonwealth (ID = 2364697) R-Player
Commonwealth: CEB Tape Machine [R-Player] ID = 2364697 1154x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model CEB Tape Machine, Commonwealth Electronics Pty. Ltd.; Hobart, TAS:
From the VWGC of WA auction 25 Feb 2019

Country:  Australia
Manufacturer / Brand:  Commonwealth Electronics Pty. Ltd.; Hobart, TAS
Year: 1955 Category: Sound/Video Recorder and/or Player
Valves / Tubes 7: 1U5 1U5 1U5 1U5 3V4 3V4 3V4
Wave bands - without
Details
Power type and voltage Dry Batteries / 1.5V, 2 x 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: CEB Tape Machine - Commonwealth Electronics Pty.
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 13.5 x 8.25 x 8.5 inch / 343 x 210 x 216 mm
Notes

Seven valve Portable, battery operated, spring driven motor, tape recorder designed for use by radio reporters and according to the advertising of the time these units were used to record the events at the 1956 Melbourne Olympic Games.

Battery types used: (A) 1½V Eveready 742  and  (B) two by 67½V Eveready 467.

An example of this recorder is held in the collection of the Sound Preservation Association of Tasmania.

Net weight (2.2 lb = 1 kg) 25 lb (25 lb 0 oz) / 11.350 kg
Mentioned in -- Original prospect or advert (Radio & Hobbies Oct 1956 Page 106.)

Model page created by Gary Cowans. See "Data change" for further contributors.
