- Country
- France
- Manufacturer / Brand
- Compagnie Franco-Américaine de Radio; Paris
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 265460
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 422 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

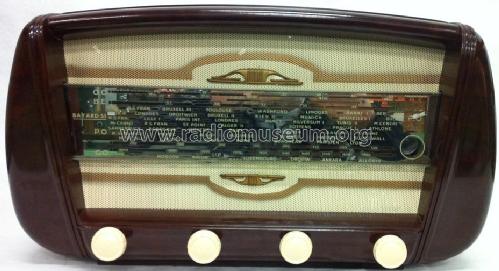

- Model: Bayard 51 - Compagnie Franco-Américaine de
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 490 x 280 x 220 mm / 19.3 x 11 x 8.7 inch
- Notes
-
2 OC dont une bande étalée (BE).
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Author
- Model page created by Leopoldo Virosta - Garoz. See "Data change" for further contributors.
- Other Models
-
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Compagnie Franco-Américaine de Radio; Paris
Collections
The model Bayard 51 is part of the collections of the following members.
