Mickey Mouse Hi-Fi Radio AM Table Top 407

Concept 2000 (Hong Kong) Ltd.; Hong Kong

  • Year
  • 1974 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 141960

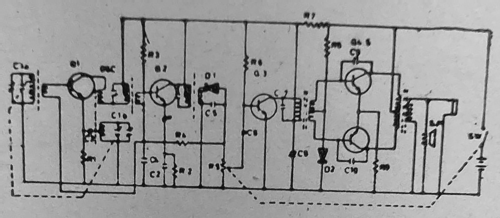

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Mickey Mouse Hi-Fi Radio AM Table Top 407 - Concept 2000 Hong Kong Ltd.;
  • Shape
  • Design Radio or Novelty / Gadget - fancy or unusual shape.
  • Dimensions (WHD)
  • 200 x 205 x 75 mm / 7.9 x 8.1 x 3 inch
  • Notes

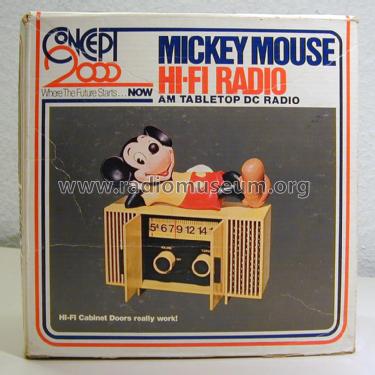

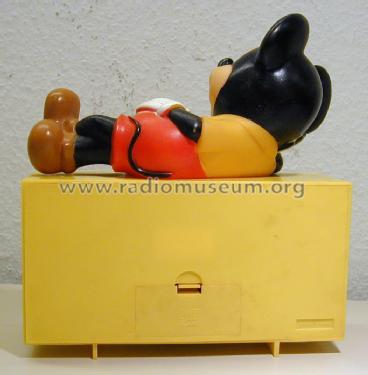

  • Mickey Mouse AM table top Hi-Fi Radio model 407, hinged doors, battery compartment at the back side.

    Made in Hong Kong by Concept 2000 NY 10010 for Walt Disney Productions.

  • Net weight (2.2 lb = 1 kg)
  • 0.6 kg / 1 lb 5.1 oz (1.322 lb)
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
