Spectrum Solid State 12

Spectrum Solid State 12; Concept 2000 Hong (ID = 1738594) Radio Spectrum Solid State 12; Concept 2000 Hong (ID = 1738595) Radio
Spectrum Solid State 12; Concept 2000 Hong (ID = 1738597) Radio Spectrum Solid State 12; Concept 2000 Hong (ID = 2119361) Radio
Use red slider bar for more.
Spectrum Solid State 12; Concept 2000 Hong (ID = 1738594) Radio
Concept 2000 Hong: Spectrum Solid State 12 [Radio] ID = 1738594 1393x902
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spectrum Solid State 12, Concept 2000 (Hong Kong) Ltd.; Hong Kong:
Picture provided by Mr. E. Wegner.

Country:  Hong Kong
Manufacturer / Brand:  Concept 2000 (Hong Kong) Ltd.; Hong Kong
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SC535 2SC461 2SC460 2SC460 2SC460 CS1585G CS1585G CS1585E 2SB365 2SB365
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Spectrum Solid State 12 - Concept 2000 Hong Kong Ltd.;
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 175 x 100 x 42 mm / 6.9 x 3.9 x 1.7 inch
Notes

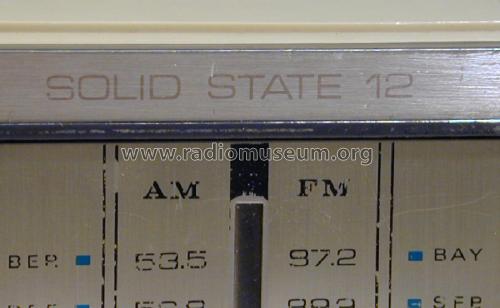

Spectrum Solid State 12 AM/FM DC radio, aluminium front.

Solid State 12: 10 transistors plus 2 diodes.

See also model Spectrum Solid State 12 PV 20 (made in Singapore).

Hong Kong based company Concept2000 Ltd. exported models like this, which were manufactured in various countries.

Net weight (2.2 lb = 1 kg) 0.325 kg / 0 lb 11.5 oz (0.716 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
