- Country
- Japan
- Manufacturer / Brand
- Coney Onkyo Co. Ltd. (Conion); Kobe
- Year
- 1984
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 241882
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player; Radio with other functions
- Power type and voltage
- Line / Batteries (any type) / 120; 240 / 10 x 1,5 or DC 13.2 Volt
- Loudspeaker
- 6 Loudspeakers
- Power out
- 30 W (45 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

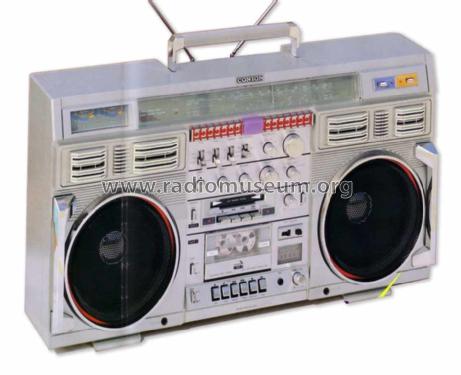

- Model: C-100F - Coney Onkyo Co. Ltd. Conion;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 745 x 401 x 204 mm / 29.3 x 15.8 x 8 inch
- Notes
-
Boombox with AM/FM radio. Two cassette players, one front-load, one slot-in. Two VU meters, two LED rows. Two headphone jacks.
Burglar alarm: when engaged a motion sensor is activated and triggers an alarm sound when the radio is moved.
Frequency ranges:
FM: 88 - 108 Mhz
MW: 530 - 1600 kHz
SW1: 2.3 - 7 MHz
SW2: 7.0 - 22 MHzSpeaker configuration:
2 x Woofer, 200 m, 5.4 Ohm
2 x Middle range, 60 mm, 8 Ohm
2 x Tweeter, 50 mmAlso sold in Canada as Clairtone 7980.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
