For model Conion 2 Transistor Boy's Radio CR-2A, Coney Onkyo Co. Ltd. (Conion); Kobe

Country:  Japan
Manufacturer / Brand:  Coney Onkyo Co. Ltd. (Conion); Kobe
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
Main principle TRF with diode detector; 2 AF stage(s); Reflex
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Conion 2 Transistor Boy's Radio CR-2A - Coney Onkyo Co. Ltd. Conion;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 80 x 33 mm / 3.9 x 3.1 x 1.3 inch
Notes

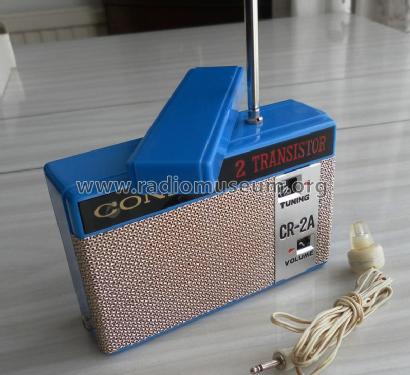

Typ "Boy's Radio", mit drehbarer Ferritantenne (Peilung), aufsteckbarer Teleskopantenne und Ohrhörer.

Vertrieben von Radio Fern, Essen

See also the models reported under Conion CR-22

Price in first year of sale 34.00 DM
Source of data -- Original prospect or advert
Mentioned in Funkschau (15/1962, S. 399)

Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
