For model 3 Band Solid State CR-P36S (Japan 109), Coney Onkyo Co. Ltd. (Conion); Kobe:
Collection of Laura Conde Pais.

Country:  Japan
Manufacturer / Brand:  Coney Onkyo Co. Ltd. (Conion); Kobe
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SC829 2SC829 2SC829 2SC828 2SC828 2SB187 2SB187
Main principle Superheterodyne (common); ZF/IF 453 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / LR20: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: 3 Band Solid State CR-P36S - Coney Onkyo Co. Ltd. Conion;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 130 x 60 mm / 8.7 x 5.1 x 2.4 inch
Notes

Band Reception:
MW:  540 - 1600 kHz
SW1: 2 - 6.5 MHz
SW2: 6.5 - 23 MHz

See also the same model, sold by AWA.

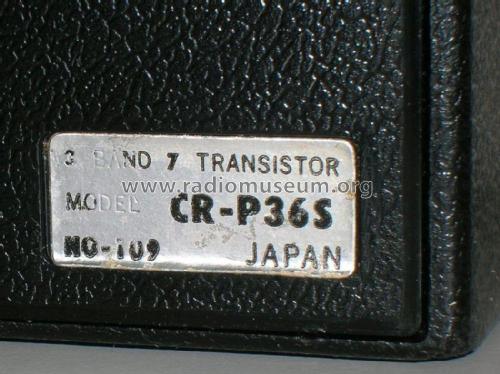

Made in Japan 109

Model page created by Daniel Rosha. See "Data change" for further contributors.
