Connecticut Detector Unit

Connecticut Detector Unit ; Connecticut (ID = 1001277) mod-pre26 Connecticut Detector Unit ; Connecticut (ID = 1001278) mod-pre26
Connecticut Detector Unit ; Connecticut (ID = 1001279) mod-pre26 Connecticut Detector Unit ; Connecticut (ID = 1001280) mod-pre26
Connecticut Detector Unit ; Connecticut (ID = 1001282) mod-pre26
Use red slider bar for more.
Connecticut Detector Unit ; Connecticut (ID = 1001277) mod-pre26
Connecticut: Connecticut Detector Unit [mod-pre26] ID = 1001277 885x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Connecticut Detector Unit, Connecticut Telephone & Electric Company (Sodion); Meriden (CT):

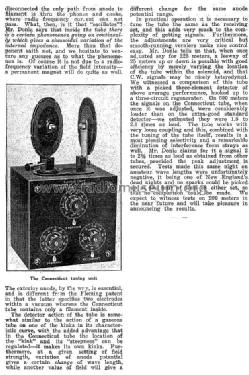

October 1921 QST article page 22-24

Country:  United States of America (USA)
Manufacturer / Brand:  Connecticut Telephone & Electric Company (Sodion); Meriden (CT)
Year: 1921 Category: Radio module pre 1926 (not a part, not a key)
Valves / Tubes 1: J-117-Connecticut
Main principle Detector with Vacuum Tube (Valve), no tuner
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Connecticut Detector Unit - Connecticut Telephone &
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes 1921 Connecticut Telephone & Electric Detector Unit utilizing the J-117 Connecticut tube.
Literature/Schematics (1) October 1921 QST article page 22-24

Model page created by Alan Larsen. See "Data change" for further contributors.



All listed radios etc. from Connecticut Telephone & Electric Company (Sodion); Meriden (CT)
Here you find 20 models, 19 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
