Sodion DR6 1 tube

Sodion DR6; Connecticut (ID = 257463) Radio Sodion DR6; Connecticut (ID = 504646) Radio
Sodion DR6; Connecticut (ID = 504648) Radio Sodion DR6; Connecticut (ID = 504667) Radio
Sodion DR6; Connecticut (ID = 504706) Radio Sodion DR6; Connecticut (ID = 504707) Radio
Sodion DR6; Connecticut (ID = 504708) Radio Sodion DR6; Connecticut (ID = 969952) Radio
Sodion DR6; Connecticut (ID = 969954) Radio
Use red slider bar for more.

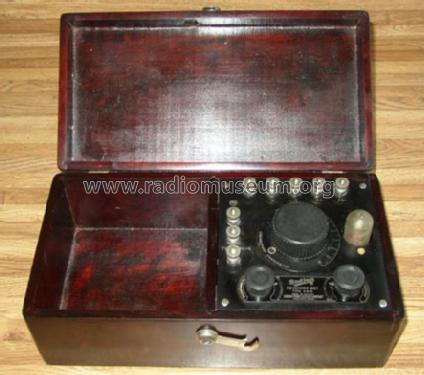

Sodion DR6; Connecticut (ID = 257463) Radio
Connecticut: Sodion DR6 [Radio] ID = 257463 444x392
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sodion DR6 1 tube, Connecticut Telephone & Electric Company (Sodion); Meriden (CT):
Copyrighted by Howard Stone, ..stonevintageradio.com.

Country:  United States of America (USA)
Manufacturer / Brand:  Connecticut Telephone & Electric Company (Sodion); Meriden (CT)
Year: 1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: Sodion_S13
Main principle TRF without regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Sodion DR6 [1 tube] - Connecticut Telephone &
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

Tunes approx. from 220 to 800 meters.
Left hand half of the box can accept two audio amplifiers D-11-1. That makes a complete Connecticut receiver.

Source of data -- Collector info (Sammler)
Mentioned in Vintage Radio 1887-1929, Greenwood's Classic Pictorial Album

Model page created by John Koster. See "Data change" for further contributors.
