Sodion JR-3

Sodion JR-3 ; Connecticut (ID = 1880520) Radio
Use red slider bar for more.
Sodion JR-3 ; Connecticut (ID = 1880520) Radio
Connecticut: Sodion JR-3 [Radio] ID = 1880520 1400x932
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sodion JR-3, Connecticut Telephone & Electric Company (Sodion); Meriden (CT):

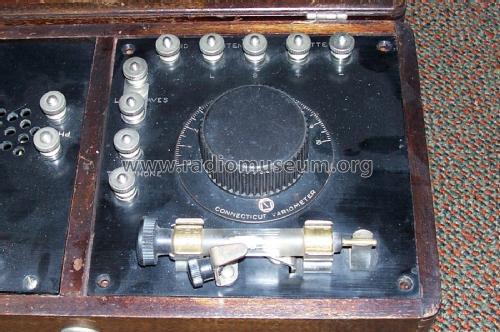

Shown with J-117 tube installed

Country:  United States of America (USA)
Manufacturer / Brand:  Connecticut Telephone & Electric Company (Sodion); Meriden (CT)
Year: 1921 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: J-117-Connecticut
Main principle TRF without regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Sodion JR-3 - Connecticut Telephone &
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes The Connecticut Telephone & Electric JR-3 Receiver was designed to use the J-117 tube. The J-117 was barely functional at best and most JR-3's were returned to the factory to be converted into DR-6 receivers.

Model page created by Alan Larsen. See "Data change" for further contributors.
