Two Valve Mains TRF

Two Valve Mains TRF; Consolidated Radio, (ID = 1070783) Radio Two Valve Mains TRF; Consolidated Radio, (ID = 1070784) Radio
Two Valve Mains TRF; Consolidated Radio, (ID = 1070785) Radio Two Valve Mains TRF; Consolidated Radio, (ID = 1070786) Radio
Two Valve Mains TRF; Consolidated Radio, (ID = 1070787) Radio Two Valve Mains TRF; Consolidated Radio, (ID = 1071143) Radio
Use red slider bar for more.
Two Valve Mains TRF; Consolidated Radio, (ID = 1070783) Radio

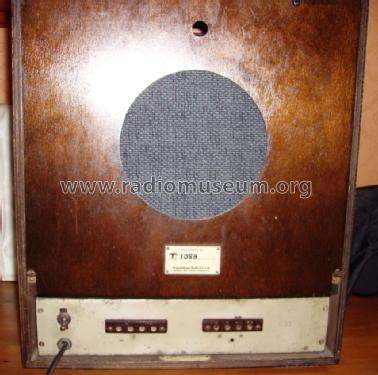

Consolidated Radio,: Two Valve Mains TRF [Radio] ID = 1070783 773x857
Select picture or schematic to display from thumbnails on the right and click for download.
For model Two Valve Mains TRF, Consolidated Radio, London

Country:  Great Britain (UK)
Manufacturer / Brand:  Consolidated Radio, London
Year: 1933 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 904V Pen4V DW3_Mullard
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.75 inch = 17.1 cm
Power out
from Radiomuseum.org Model: Two Valve Mains TRF - Consolidated Radio, London
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 14.25 x 16.75 x 8.25 inch / 362 x 425 x 210 mm
Notes Pre WW2 it was common in UK to exclude rectifier and mag.Eye from the valve count. The had been added separately, ergo here 2+R in the old style (see J.Hill, RadioRadio). On the continent and in USA the total number was used.
In RMorg we note all valves, but we do not count stabilisers and ballasts. Ergo 3 as seen above.
Net weight (2.2 lb = 1 kg) 19 lb 13 oz (19.813 lb) / 8.995 kg

Model page created by Pete Rich. See "Data change" for further contributors.



All listed radios etc. from Consolidated Radio, London
Here you find 4 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
