• Year
  • 1957 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 307323

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 117; 130; 145; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Bakelite case
  • from Radiomuseum.org

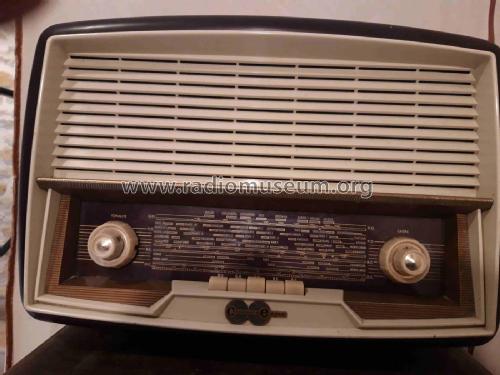

  • Model: 511 - Continental Edison, Compagnie
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 440 x 300 x 200 mm / 17.3 x 11.8 x 7.9 inch
  • Notes
  • 4 gammes d'ondes dont 1 bande étalée (BE). Cadre à air orientable.

  • Author
  • Model page created by Mark Hippenstiel. See "Data change" for further contributors.
