Combiné Mini T.V-Radio RTV 5060
Continental Edison, Compagnie Continentale Édison; Paris
- Country
- France
- Manufacturer / Brand
- Continental Edison, Compagnie Continentale Édison; Paris
- Year
- 1979 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 244557
ebay.fr #350926725930 seller j.s.3.4
ebay.fr #161198976774 seller zouzou11

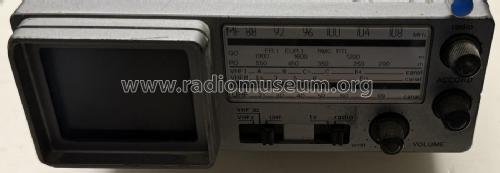

Vue de face
Vue de dessus
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Batteries / addl. power jack / R6: 6 x 1.5 / DC 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Combiné Mini T.V-Radio RTV 5060 - Continental Edison, Compagnie
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Téléviseur multi-standard radio combiné. Antenne télescopique. Prise DC avec commutateur normal et charge. Prise écouteur. Prise antenne extérieure avec commutation. Écran de 5 cm.
3 gammes d'ondes radio: MF 88 - 108 MHz, GO 1000 - 1900 m, PO 200 - 550 m.
TV gammes UHF, VHF I et III. Multi-standard 625 lignes; UK, Europe et France.Made in Japan.
