Transistor Six TR-215

• Country
• United States of America (USA)

• Manufacturer / Brand
• Continental Merchandise Co. Inc. (CMC); New York, NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135694

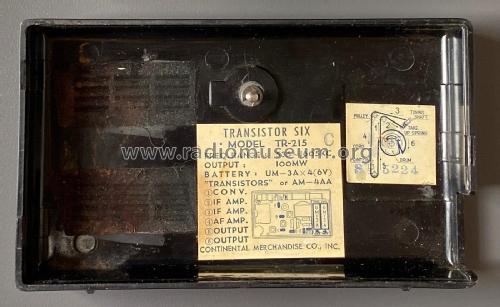

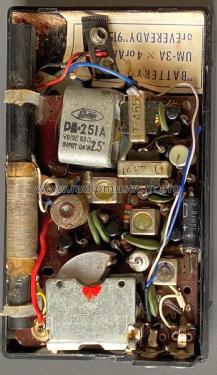

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2S30 2S31 2S31 2S32 2S33 2S33

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transistor Six TR-215 - Continental Merchandise Co.

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 6 x 3.25 x 1.25 inch / 152 x 83 x 32 mm

• Notes

• Battery operated transistorized portable AM receiver.

  Made in Japan by Sharp (Hayakawa Electric Co., Ltd.) for Continental Merchandise Co.Inc.
  See also Sharp Transistor Six TR-215

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 472 folder 4 date 1-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 48 models, 43 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Continental Merchandise Co. Inc. (CMC); New York, NY
