10SA-3 60 Watt

10SA-3; Coral Audio Corp.; (ID = 740873) Speaker-P 10SA-3; Coral Audio Corp.; (ID = 740872) Speaker-P
10SA-3; Coral Audio Corp.; (ID = 740870) Speaker-P 10SA-3; Coral Audio Corp.; (ID = 740874) Speaker-P
Use red slider bar for more.
10SA-3; Coral Audio Corp.; (ID = 740873) Speaker-P
Coral Audio Corp.;: 10SA-3 [Speaker-P] ID = 740873 520x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10SA-3 60 Watt, Coral Audio Corp.; Tokyo

Country:  Japan
Manufacturer / Brand:  Coral Audio Corp.; Tokyo
Year: 1970 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: 10SA-3 [60 Watt] - Coral Audio Corp.; Tokyo
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 370 x 285 x 620 mm / 14.6 x 11.2 x 24.4 inch

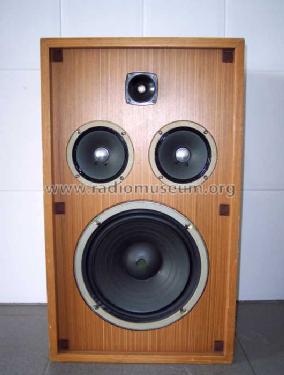

Notes Floor Speaker. Music Power Input 60 W - 8 Ohms. 1 Woofer 25 cm, 2 Mids 12 cm, 1 Tweeter 6 cm.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Source of data - - Data from my own collection

Model page created by J. Virgilio Santos. See "Data change" for further contributors.



All listed radios etc. from Coral Audio Corp.; Tokyo
Here you find 4 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
