12SA-3 80 Watt

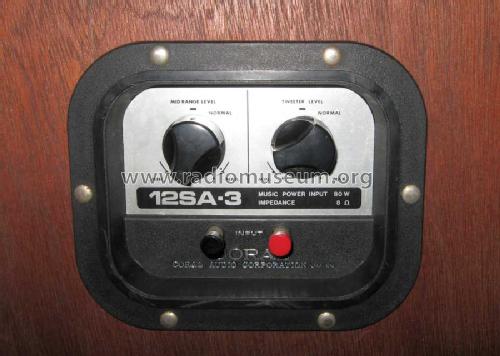

12SA-3; Coral Audio Corp.; (ID = 740877) Speaker-P 12SA-3; Coral Audio Corp.; (ID = 740876) Speaker-P
Use red slider bar for more.
12SA-3; Coral Audio Corp.; (ID = 740877) Speaker-P
Coral Audio Corp.;: 12SA-3 [Speaker-P] ID = 740877 492x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 12SA-3 80 Watt, Coral Audio Corp.; Tokyo

Country:  Japan
Manufacturer / Brand:  Coral Audio Corp.; Tokyo
Year: 1970 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: 12SA-3 [80 Watt] - Coral Audio Corp.; Tokyo
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 380 x 250 x 655 mm / 15 x 9.8 x 25.8 inch
Notes Floor Speaker System. Music power Input 80 W - 8 Ohms Woofer 31 cm, 3 Mids ( 16cm, 13 cm, 10 cm ) 1 tweeter 6 cm
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Source of data - - Data from my own collection

Model page created by J. Virgilio Santos. See "Data change" for further contributors.
