B-3810 (CB-3810)
Cosmo S.A., Industrias; Granollers (Barcelona)
- Country
- Spain
- Manufacturer / Brand
- Cosmo S.A., Industrias; Granollers (Barcelona)
- Year
- 1972 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 203625
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 5 W (undistorted)
- Material
- Various materials
- from Radiomuseum.org
- Model: B-3810 - Cosmo S.A., Industrias;

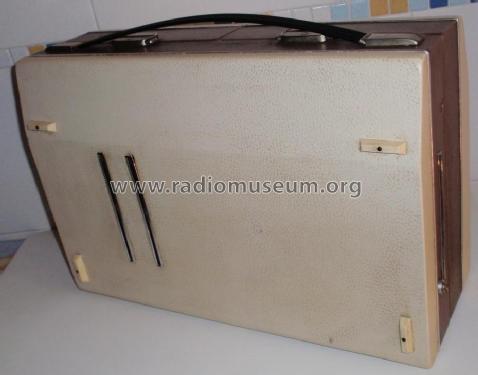

- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 440 x 180 x 300 mm / 17.3 x 7.1 x 11.8 inch
- Notes
-
Industrias Cosmo, S.A. Tocadiscos estereofónico manual B-3810 (CB-3810)
Un altavoz de 7,5" @ 16 Ω por canal.
- Net weight (2.2 lb = 1 kg)
- 7.625 kg / 16 lb 12.7 oz (16.795 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
