• Country
• Spain

• Manufacturer / Brand
• Cosmo S.A., Industrias; Granollers (Barcelona)

• Year
• 1966

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 201626

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• AC125 or. AC126 AC125 or. AC126 AC128 AC128 Metal-rectifier

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• from Radiomuseum.org

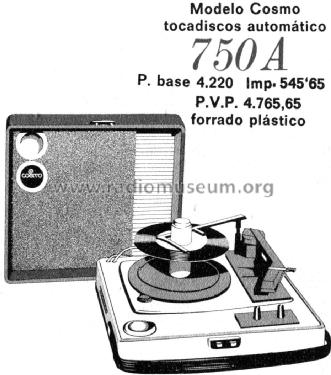

• Model: C-750-A [3º] - Cosmo S.A., Industrias;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Lleva plato giradiscos MK40 con cápsula D-62.00 y aguja B-60.06.
  Rectificador B30C250.
  Transformador inter-etapa tipo Merpoc 329.

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
