Conver 120

Country:  Spain
Manufacturer / Brand:  Cosmo S.A., Industrias; Granollers (Barcelona)
Year: 1966 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 inch = 14 cm
Power out
from Radiomuseum.org Model: Conver 120 [1º] - Cosmo S.A., Industrias;
Material Various materials
Shape Tablemodel, with any shape - general.
Notes Usa plato giradiscos tipo MK-20 con cápsula B-62.00 y aguja B-60.06.
Transformador driver tipo Merpoc 113.
Rectificador B30C250

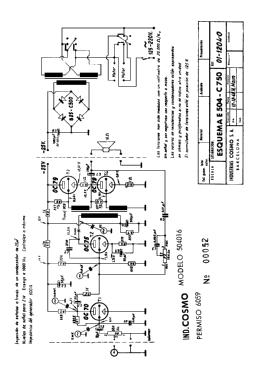

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
