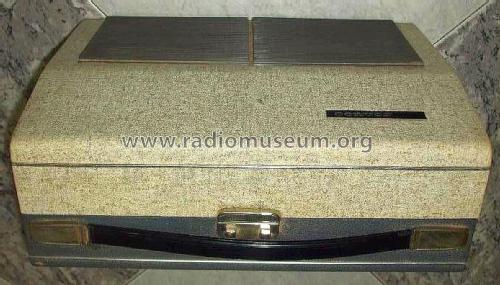

Conver 420

Conver 420; Cosmo S.A., (ID = 1060677) R-Player
Use red slider bar for more.
Conver 420; Cosmo S.A., (ID = 1060677) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Spain
Manufacturer / Brand:  Cosmo S.A., Industrias; Granollers (Barcelona)
Year: 1967 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present. AC125 or. AC126 AC125 or. AC126 AC128 AC128
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 inch = 14 cm
Power out
from Radiomuseum.org Model: Conver 420 - Cosmo S.A., Industrias;
Material Various materials
Shape Tablemodel, with any shape - general.

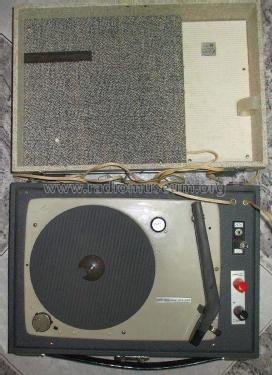

Notes Usa plato giradiscos tipo MK-20 con cápsula B-62.00 y aguja B-60.06.
Rectificador B30C250.
Según el esquema usa plato modelo MK-21.
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Cosmo S.A., Industrias; Granollers (Barcelona)
Here you find 146 models, 64 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
