- Country
- Great Britain (UK)
- Manufacturer / Brand
- Cossor, A.C.; London
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 186517
Original Technicals Papers
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 120 & 45 & -4,5 & -9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 373 - Cossor, A.C.; London
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 20 x 13.5 x 10 inch / 508 x 343 x 254 mm
- Mentioned in
- - - Manufacturers Literature (Catalogue "Cossor Radio 1937")
- Literature/Schematics (1)

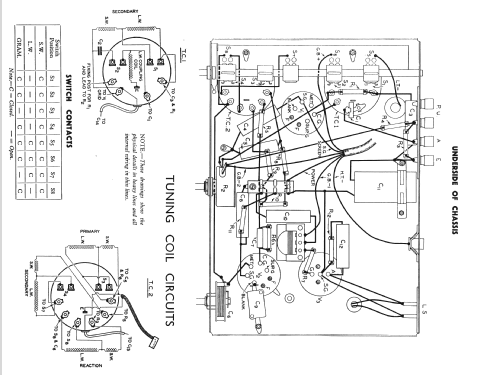

- -- Original-techn. papers. (Original Cossor Service Hints SM 38 for model 373)
- Author
- Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
