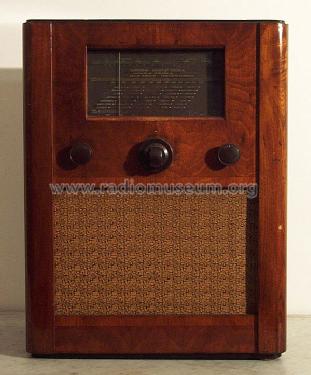

77; Cossor, A.C.; London (ID = 1226567) Radio
Cossor, A.C.; London: 77 [Radio] ID = 1226567 600x723
Select picture or schematic to display from thumbnails on the right and click for download.
For model 77, Cossor, A.C.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Cossor, A.C.; London
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 41STH MVS/PenB DDT 2P 431U
Main principle Superheterodyne (common); ZF/IF 465 kHz

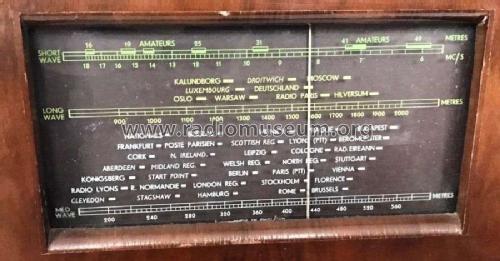

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 77 - Cossor, A.C.; London
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 14.5 x 18.5 x 10 inch / 368 x 470 x 254 mm
Notes Also a bakelite cabinet version 77. A similar chassis is fitted in the Cossor 71B, 62B, 63, 64B, 66 and 66A models.
Source of data Radio! Radio!
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (502)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
