Melody Maker 334
Cossor, A.C.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Cossor, A.C.; London
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 77937

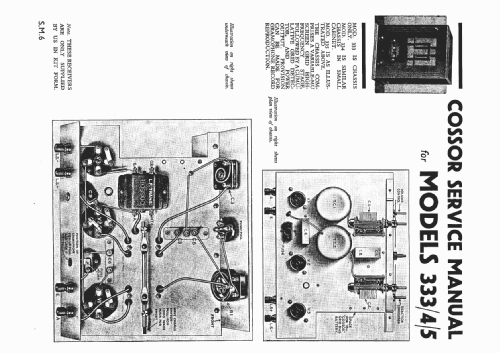

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Conflicting model year with tube data.
- The model date contradicts tube dates. [ 220VSG (1935)]
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Melody Maker 334 - Cossor, A.C.; London
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 14 x 9.5 x 10 inch / 356 x 241 x 254 mm
- Notes
- Sold in kit form with a small walnut cabinet (box) with lid. Used the same chassis as model 335, which was supplied with a larger cabinet and speaker.
- Source of data
- Radio! Radio!
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
