• Country
• Great Britain (UK)

• Manufacturer / Brand
• Cossor, A.C.; London

• Year
• 1928

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 212170

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

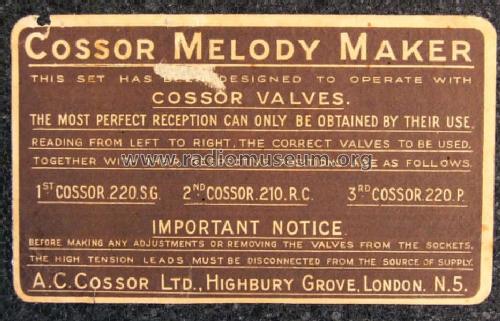

• 210SG or 220SG 210RC 220P

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Melody Maker [kit] - Cossor, A.C.; London

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 17.5 x 9 x 10 inch / 445 x 229 x 254 mm

• Notes

• The Cossor Melody Maker kit from 1928 is similar to Harlie Melody Maker, which could be bought a kit or factory-built. We are not sure if Cossor Melody Maker as also factory-built possible, but for finding in any case we duplicate as model and as a kit. Kit cost £7.15s.0d.

  Dials are Pilot, Vernier Art-Dial - Deluxe Model Cat No. 1278.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
