• Country
• Great Britain (UK)

• Manufacturer / Brand
• Cossor, A.C.; London

• Year
• 1933 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 87476

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• MVSG 41MH 41MP 442BU

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-215; 216-235; 236-250 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known. / Ø 25 cm = 9.8 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: All Electric 3467 - Cossor, A.C.; London

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 440 x 950 x 270 mm / 17.3 x 37.4 x 10.6 inch

• Notes

• The R2 might be found as replacement of 442BU in some examples.

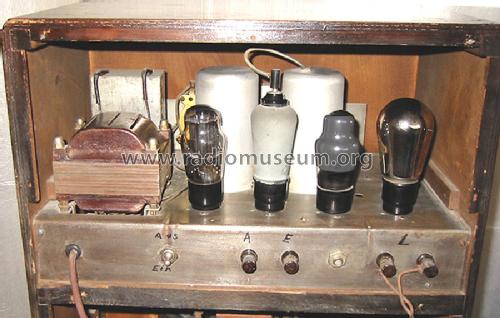

  The RF stage (MVSG Sgreen grid / Tetrode) is beside the mains Rectifier (442BU)  and the audio output is 41MP at far end to the PSU. The 41MH is likely a triode "anode bend" or "leaky grid" detector  The 347 and 3468 (see schematic)  may be very similar circuits.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Heinz Schmidt. See "Data change" for further contributors.
