Craig 1209 (Japan 704)

Craig Panorama Inc.; Los Angeles, CA

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 295718
    • Brand: Vista

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Power: Charger for A-Batteries
  • Power type and voltage
  • Dry Batteries / 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Craig 1209 - Craig Panorama Inc.; Los
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 175 x 95 x 46 mm / 6.9 x 3.7 x 1.8 inch
  • Notes

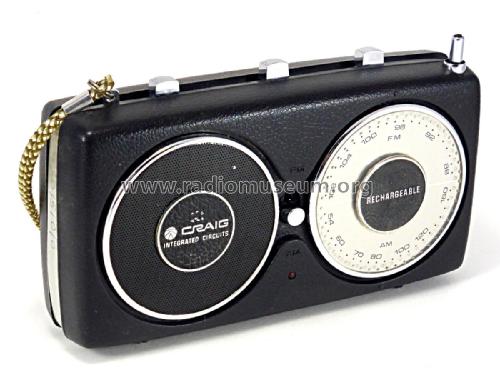

  • Craig 1209.

    Powered by rechargeable batteries.  AM/FM. Wrist Strap. On/Off switch. Slider volume control. Slider tone control.   Close cousin to Craig 1107

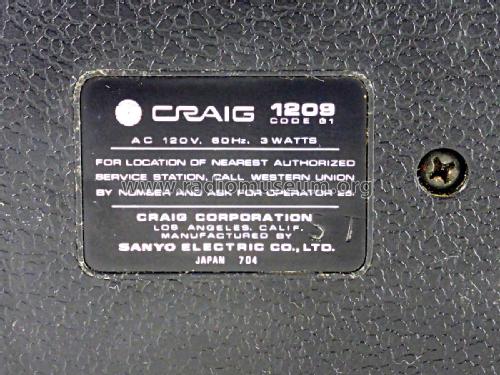

    Made in Japan 704 by Sanyo

  • Author
  • Model page created by Ray Albright. See "Data change" for further contributors.
