Craig Pioneer 3205

Craig Pioneer 3205; Craig Panorama Inc.; (ID = 2307892) R-Player Craig Pioneer 3205; Craig Panorama Inc.; (ID = 2307893) R-Player
Craig Pioneer 3205; Craig Panorama Inc.; (ID = 2307894) R-Player Craig Pioneer 3205; Craig Panorama Inc.; (ID = 2307900) R-Player
Craig Pioneer 3205; Craig Panorama Inc.; (ID = 2307903) R-Player Craig Pioneer 3205; Craig Panorama Inc.; (ID = 2307904) R-Player
Craig Pioneer 3205; Craig Panorama Inc.; (ID = 2307905) R-Player
Use red slider bar for more.
Craig Pioneer 3205; Craig Panorama Inc.; (ID = 2307892) R-Player
Craig Panorama Inc.;: Craig Pioneer 3205 [R-Player] ID = 2307892 1400x970
Select picture or schematic to display from thumbnails on the right and click for download.
For model Craig Pioneer 3205, Craig Panorama Inc.; Los Angeles (CA):

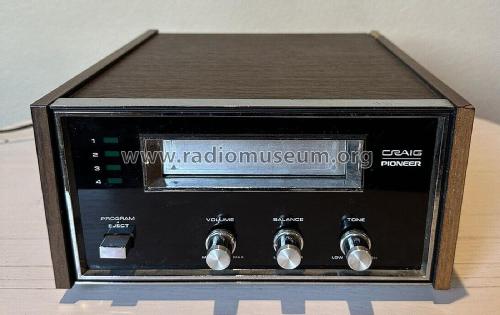

cabinet front, top & left side view

Country:  United States of America (USA)
Manufacturer / Brand:  Craig Panorama Inc.; Los Angeles (CA)
Brand

Vista
Year: 1970 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Audio-Amplification
Details Special Tape or Cassette-Format
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Craig Pioneer 3205 - Craig Panorama Inc.; Los
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 225 x 110 x 275 mm / 8.9 x 4.3 x 10.8 inch
Notes

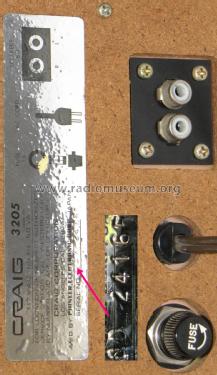

Craig Corp. (Los Angeles) Model 3205, Code 01, 8-track tape cartridge player with left & right 8 Ohm speaker outputs through RCA jacks. Controls: Volume, Balance, Tone, Program-Eject. Display: 4 lamp track indicator. Has 1 motor with fan and belt drive to flywheel and capstan; 2 solenoids: head position ratchet and eject; 2 printed circuit boards: amplifier and power supply; 1 AC power transformer. Discrete transistors, no integrated circuits. Bare copper traces on printed circuit boards except where components were soldered suggests hand soldering rather than solder bath. Manufactured in Japan by Pioneer Electronic Corp. No manufacturing date visible.

Model page created by Gary Brandenburger. See "Data change" for further contributors.
