7503

7503; CRC, Brussels (ID = 565955) Radio

7503; CRC, Brussels (ID = 565956) Radio

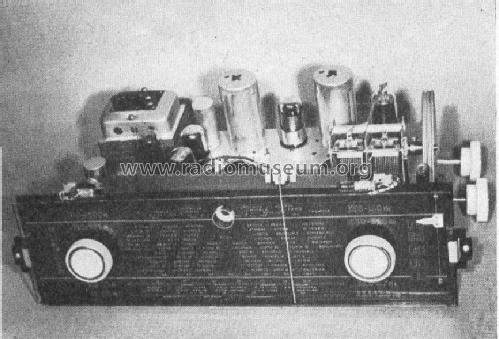

7503; CRC, Brussels (ID = 565953) Radio 7503; CRC, Brussels (ID = 565954) Radio
Use red slider bar for more.
7503; CRC, Brussels (ID = 565953) Radio
CRC, Brussels: 7503 [Radio] ID = 565953 788x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7503, CRC, Brussels:
Q = radio en televisie revue 1950

Country:  Belgium
Manufacturer / Brand:  CRC, Brussels
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K8 6SK7 6SQ7 6V6 6E5 5Y3
Main principle Super-Heterodyne (Super in general); ZF/IF 484 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 7503 - CRC, Brussels
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Also sold as kit
Source of data -- Original prospect or advert

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from CRC, Brussels
Here you find 2 models, 2 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
