Générateur-BF GB62; CRC, Constructions (ID = 597446) Misc
CRC, Constructions: Générateur-BF GB62 [Misc] ID = 597446 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Générateur-BF GB62, CRC, Constructions Radioélectriques et Électroniques du Centre; Saint-Étienne

Country:  France
Manufacturer / Brand:  CRC, Constructions Radioélectriques et Électroniques du Centre; Saint-Étienne
Year: 1955 ?? Category: Miscellaneous (Other, Various) - see notes
Valves / Tubes 4: 6AQ5 6AQ5 6X4 12AU7
schematic requested
Details
Power type and voltage 110-240 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Générateur-BF GB62 - CRC, Constructions
Material Metal case
Dimensions (WHD) 330 x 220 x 220 mm / 13 x 8.7 x 8.7 inch
Notes Generatore di bassa frequenza fino a 300Khz, uscita onda quadra e onda sinusoidale, scala illuminata
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Source of data - - Data from my own collection

Model page created by Paolo Stigliano. See "Data change" for further contributors.



All listed radios etc. from CRC, Constructions Radioélectriques et Électroniques du Centre; Saint-Étienne
Here you find 20 models, 20 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
CRC, Constructions: Générateur-BF GB62
Threads: 1 | Posts: 2
Hits: 1310     Replies: 1
crc: GB62; Générateur-BF
Paolo Stigliano
06.Apr.09
  1

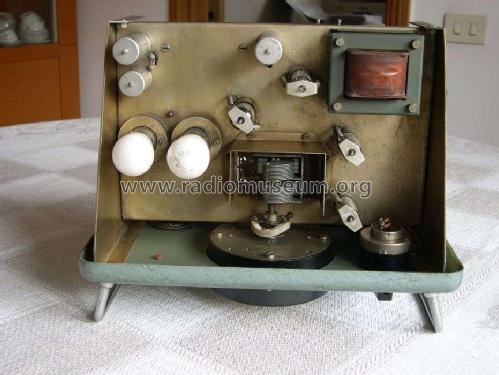

Buongiorno, vorrei sapere che funzione hanno i due dispositivi, per tutto identici a lampadine color latte con innesto a baionetta, che sono visibili all'interno del generatore. Un saluto, Paolo.

Emilio Ciardiello
07.Apr.09
  2

Purtroppo lo schema non è disponibile. E' probabile comunque che gli oggetti color latte simili a lampadine siano proprio normali lampadine. Il coefficiente di temperatura positivo del filamento di lampadine ad incandescenza era normalmente utilizzato per stabilizzare l'ampiezza delle oscillazioni in oscillatori sinusoidali a ponte.

Emilio
