• Country
• Singapore

• Manufacturer / Brand
• Creative Technology Ltd.; Jurong East

• Year
• 2004 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 366994

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• - without

• Details
• HD or solid state memory

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 100 - 240 / 5 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

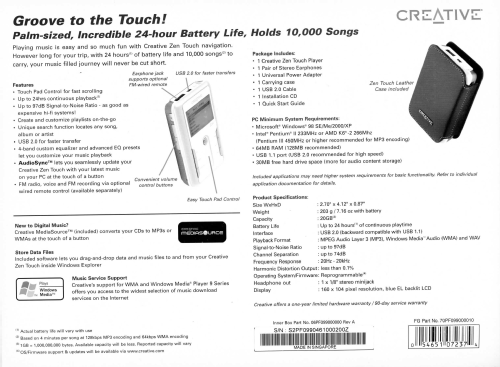

• Model: Zen Touch DAP-HD0014 - Creative Technology Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.7 x 4.12 x 0.87 inch / 69 x 105 x 22 mm

• Notes

• MP3 player with 20 GB hard drive.

• Net weight (2.2 lb = 1 kg)
• 0.203 kg / 0 lb 7.2 oz (0.447 lb)

• Author
• Model page created by David Erali. See "Data change" for further contributors.

• Other Models

• Here you find 2 models, 2 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
