• Year
  • 1948 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 133688

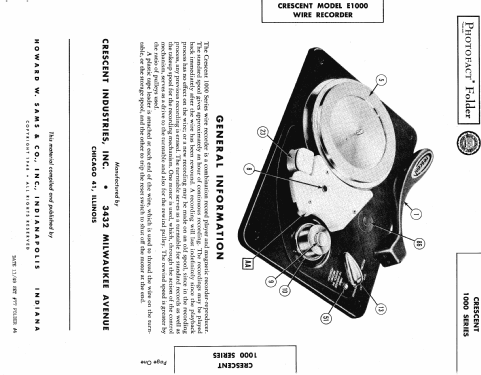

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Wire Recorder (or -Player)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 1000 Series C-1000 - Crescent Industries, Inc.;
  • Shape
  • Chassis only or for «building in»
  • Notes
  • The Crescent 1000 Series Wire Recorder made by Crescent Industries, Inc., Chicago, is a combination record player and magnetic recorder-reproducer. The standard spool gives approximately an hour of continuous recording. There are different chassis like C-1000 Series, M-1000 Series and E-1000 Series. The CWR30 and E-1000 series use the WR21-B Pickup arm and pivot spring assemly and the C-1000 and M-1000 series use the WR50 pickup arm and pivot spring assembly. The motor can be for 105-125 volts, 60 cycles (standard) or ordered for 220 volts 60 cycles. Both tensions can be ordered for 50 cycles.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
