• Country
• United States of America (USA)

• Manufacturer / Brand
• Crescent Industries, Inc.; Chicago, IL

• Year
• 1948 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 133689

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Wire Recorder (or -Player)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: 1000 Series E-1000 - Crescent Industries, Inc.;

• Shape
• Chassis only or for «building in»

• Notes

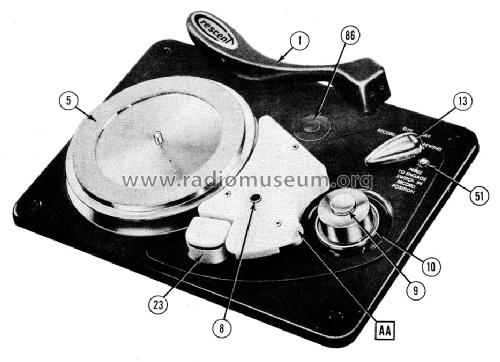

• The Crescent 1000 Series Wire Recorder made by Crescent Industries, Inc., Chicago, is a combination record player and magnetic recorder-reproducer. The standard spool gives approximately an hour of continuous recording. There are different chassis like C-1000 Series, M-1000 Series and E-1000 Series. The CWR30 and E-1000 series use the WR21-B Pickup arm and pivot spring assemly and the C-1000 and M-1000 series use the WR50 pickup arm and pivot spring assembly. The motor can be for 105-125 volts, 60 cycles (standard) or ordered for 220 volts 60 cycles. Both tensions can be ordered for 50 cycles.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 77, Date 11/49, Folder 4)

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 41, Date 5/48, Folder 4811-25)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
