• Year
  • 1956 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 270791

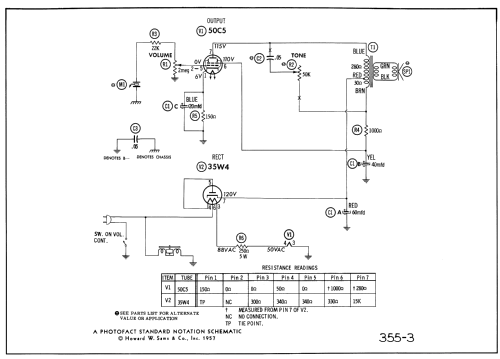

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification; 1 AF stage(s)
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 105 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: A-4600 Record Player - Crescent Industries, Inc.;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • The Crescent A-4600 is an AC operated 2 tube 3 speed mono record player with automatic record changer. Uses Qty(1) PM 4" x 6" speaker.
