Cristalette 154U

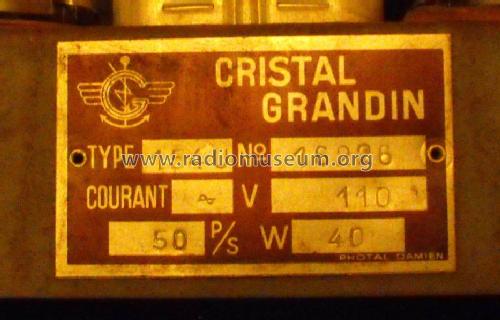

Cristalette 154U; Grandin, Cristal- (ID = 702673) Radio Cristalette 154U; Grandin, Cristal- (ID = 702675) Radio
Use red slider bar for more.
Cristalette 154U; Grandin, Cristal- (ID = 702673) Radio
Grandin, Cristal-: Cristalette 154U [Radio] ID = 702673 933x710
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cristalette 154U, Grandin, Cristal-Grandin (SFRT); Paris, Montreuil

Country:  France
Manufacturer / Brand:  Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6H8MG 6M7 6E8 6V6 5Y3G
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 125 inch = 317.5 cm
Power out
from Radiomuseum.org Model: Cristalette 154U - Grandin, Cristal-Grandin SFRT;
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 255 x 182 x 175 mm / 10 x 7.2 x 6.9 inch
Notes

Voir aussi le modèle Cristalette en T.C.

Model page created by Giuseppe Duello. See "Data change" for further contributors.



All listed radios etc. from Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
Here you find 277 models, 212 with images and 83 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
