7-tube TRF console

7-tube TRF console ; Criterion; where? (ID = 1625432) Radio 7-tube TRF console ; Criterion; where? (ID = 1625433) Radio
7-tube TRF console ; Criterion; where? (ID = 1625434) Radio 7-tube TRF console ; Criterion; where? (ID = 1625435) Radio
7-tube TRF console ; Criterion; where? (ID = 1625437) Radio 7-tube TRF console ; Criterion; where? (ID = 1625438) Radio
Use red slider bar for more.
7-tube TRF console ; Criterion; where? (ID = 1625432) Radio
Criterion; where?: 7-tube TRF console [Radio] ID = 1625432 933x1147
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7-tube TRF console, Criterion; (where?)

Country:  United States of America (USA)
Manufacturer / Brand:  Criterion; (where?)
Year: 1930 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 26 26 26 24A 26 45 80
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 2 W (undistorted)
from Radiomuseum.org Model: 7-tube TRF console - Criterion; where?
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 27 x 39.5 x 15 inch / 686 x 1003 x 381 mm
Notes

The chassis is made of spot-welded galvanised steel, with the top and sides painted.

Very unusual: the volume control (reaction ?) for the 4th tuned circuit (Det.), and the slight reaction for the 1st RF by increasing the grid to plate capacity.

Model page created by Stephen Masek. See "Data change" for further contributors.



All listed radios etc. from Criterion; (where?)
Here you find 4 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Criterion; where?: 7-tube TRF console
Threads: 1 | Posts: 2
Hits: 1361     Replies: 1

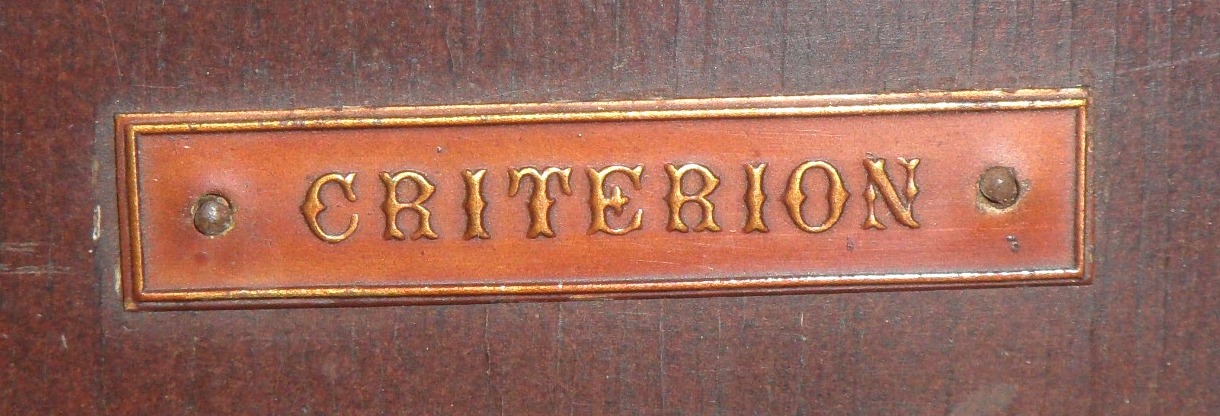

Criterion
Stephen Masek
13.Mar.14
  1

Have you ever hard of the brand or manufacturer Criterion?  A few days ago I bought a Criterion radio.  It is a low-boy console with  7-tube TRF chassis.  I already have it playing.

Sombody is on E-Bay now trying to sell a page from a 1930 Blish, Mize & Silliman Hardware Co. catalog showng Criterion radios.  The two models shown on that page use screen grid tubes, so they are probably one model year newer than the radio I have.  They may not even be from the same maker.  However, the chassis in my radio is painted, and I see that a radio in that ad has a chassis finished in "gold moire," which would mean paint.

Attachments

Stephen Masek
14.Mar.14
  2

Thank you to all who have viewed this thread.  I added photographs and a schematic.


Criterion; where?: 7-tube TRF console
