• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345453

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AT6 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

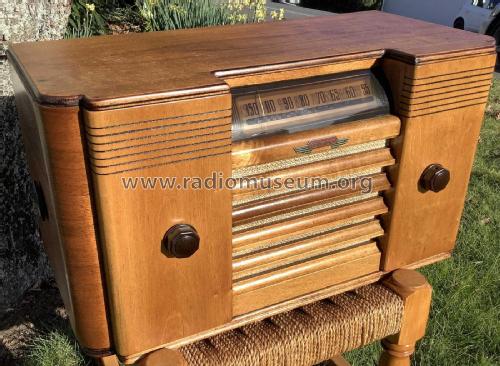

• Model: Gulbransen 618R - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 490 x 260 x 235 mm / 19.3 x 10.2 x 9.3 inch

• Notes

• 6-Valve superhet with RF stage broadcast (MW) table receiver.

  Plessey 68833R/I permeability tuning.

  See also Cromwell 618R.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
