• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 362453

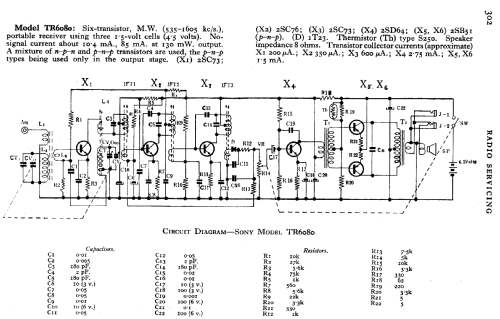

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SC73 2SC76 2SC73 2SD64 2SB51 2SB51

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / C: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

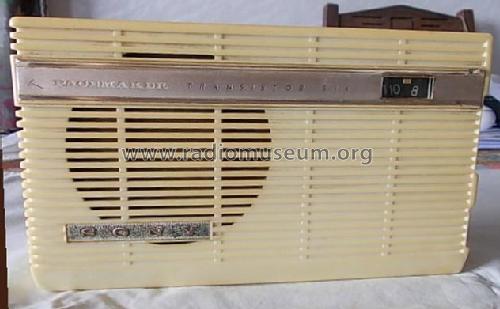

• Model: Sony Pacemaker Transistor Six TR-6080 - Cromwell, Gulbransen NZ,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 190 x 110 x 45 mm / 7.5 x 4.3 x 1.8 inch

• Notes

• Sony TR-6080 Pacemaker Transistor Six

  6-transistor broadcast (MW) portable. £19/19/-

  Made by Collier & Beale Ltd, Wellington for H. W. Clarke (NZ) Ltd under licence from Sony Corporation, Japan.

  See also Japan model TR6080.

• Price in first year of sale
• 19.80 NZ £

• Mentioned in
• -- Original prospect or advert (Press 16 October 1963 Page 22)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
