Crosley Radio Corp.;: 11-119U "Serenader" Ch= 330 [Radio] ID = 353193 529x407
Select picture or schematic to display from thumbnails on the right and click for download.
For model 11-119U "Serenader" Ch= 330, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 11-119U "Serenader" Ch= 330 - Crosley Radio Corp.;
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 9.2 x 5.7 x 5.75 inch / 234 x 145 x 146 mm
Notes

Color= Smoke Blue.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Beitman Radio Diagrams Vol. 11, 1951
Mentioned in Table Top Radios Vol. 1 Stein 98 (Rider's Perpetual, Volume 22)

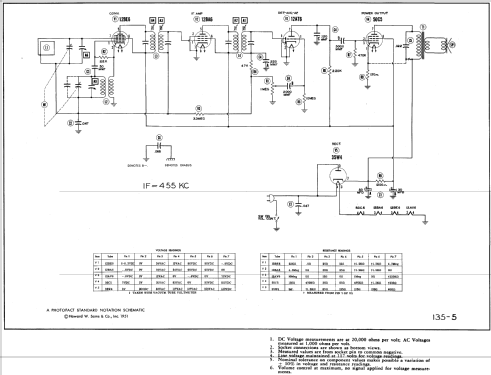

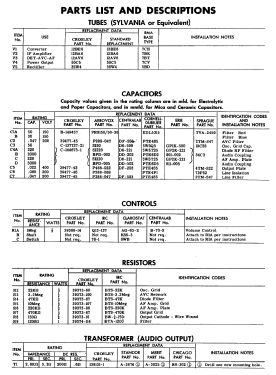

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-1951, Set 135, Folder 5)
