• Year
  • 1951 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 80735

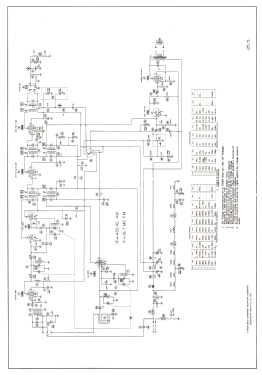

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 11-127U Ch=312 - Crosley Radio Corp.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes

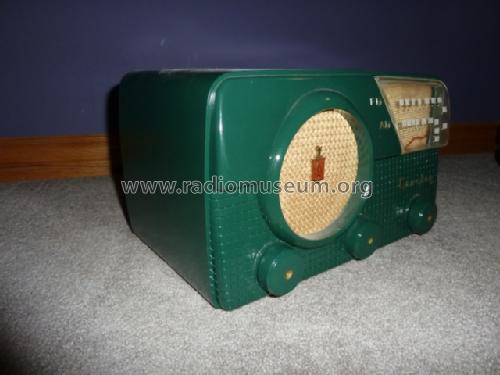

  • Crosley model 11-127U is a AM-FM superheterodyne receiver with loop antenna. Cabinet simulated green morroco leather; front green.
