• Year
  • 1931/1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139803

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Cheerio 124 - Crosley Radio Corp.;
  • Shape
  • Console, Highboy (legs > 50 %).
  • Dimensions (WHD)
  • 0 x 40 x 0 inch / 0 x 1016 x 0 mm
  • Notes
  • Stretcher base.

  • Price in first year of sale
  • 65.00 $ !
  • Literature/Schematics (2)

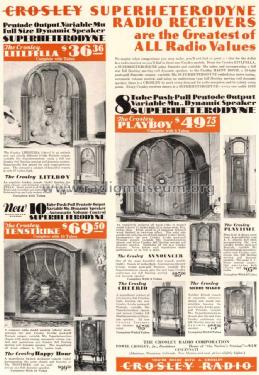

  • Radio Craft (Oct.1931, p.235)
