Tenstrike 127

Tenstrike 127 ; Crosley Radio Corp.; (ID = 18107) Radio

Tenstrike 127 ; Crosley Radio Corp.; (ID = 18108) Radio
Tenstrike 127 ; Crosley Radio Corp.; (ID = 56332) Radio Tenstrike 127 ; Crosley Radio Corp.; (ID = 443302) Radio
Tenstrike 127 ; Crosley Radio Corp.; (ID = 717160) Radio Tenstrike 127 ; Crosley Radio Corp.; (ID = 1087521) Radio
Tenstrike 127 ; Crosley Radio Corp.; (ID = 1087522) Radio Tenstrike 127 ; Crosley Radio Corp.; (ID = 1591700) Radio
Use red slider bar for more.
Tenstrike 127 ; Crosley Radio Corp.; (ID = 56332) Radio
Crosley Radio Corp.;: Tenstrike 127 [Radio] ID = 56332 386x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tenstrike 127, Crosley Radio Corp.; Cincinnati (OH):
Copy gen. von Ben Martin Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 35 27 24 or 35 35 27 24 27 47 47 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: Tenstrike 127 - Crosley Radio Corp.;
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 16 x 20.5 x 10 inch / 406 x 521 x 254 mm
Notes

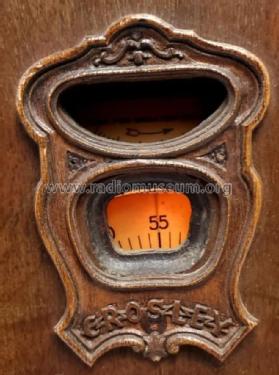

Tuning meter. AGC. Early series used a 24 type first detector tube.

Net weight (2.2 lb = 1 kg) 32 lb (32 lb 0 oz) / 14.528 kg
Price in first year of sale 69.50 $
External source of data E. Erb 3-907007-36-0
Source of data Machine Age to Jet Age II
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Mentioned in Radio Collector`s Guide 1921-1932
Literature/Schematics (1) Rider's Perpetual, Volume 2 = 1932 and before
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (December 1931, inside back cover.)
Literature/Schematics (3) Cathedral & Tombstone Radios (page 89.)
