For model 14 AG, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details

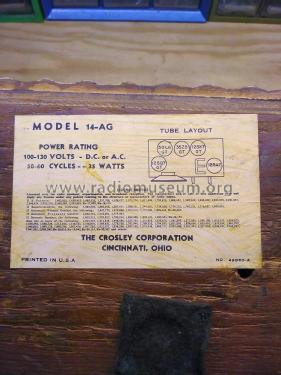

Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 1.1 W (unknown quality)
from Radiomuseum.org Model: 14 AG - Crosley Radio Corp.;

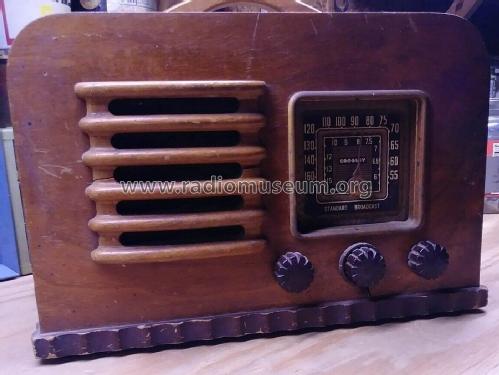

Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.25 x 9.25 x 6.75 inch / 311 x 235 x 171 mm
Notes

Heliscope loop antenna.

Price in first year of sale 17.95 $

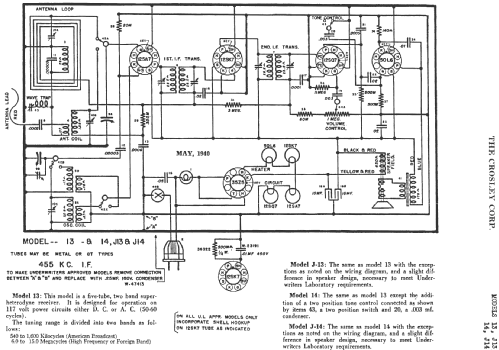

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Table Top Radios Vol. 1 Stein 98 (page 52)

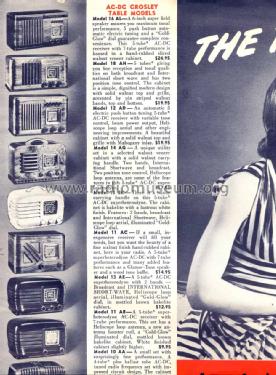

Literature/Schematics (1) Crosley 20th Anniversary Special 1941 catalogue
Literature/Schematics (3) Crosley Folder No. 2901, Season 1940/41.

Model page created by Vitor Oliveira. See "Data change" for further contributors.
