Dual Ten Lowboy Ch= 170

Dual Ten Lowboy Ch= 170; Crosley Radio Corp.; (ID = 133846) Radio
Dual Ten Lowboy Ch= 170; Crosley Radio Corp.; (ID = 827030) Radio Dual Ten Lowboy Ch= 170; Crosley Radio Corp.; (ID = 538148) Radio

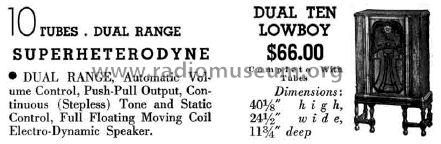

Dual Ten Lowboy Ch= 170; Crosley Radio Corp.; (ID = 631757) Radio
Use red slider bar for more.
Dual Ten Lowboy Ch= 170; Crosley Radio Corp.; (ID = 827030) Radio
Crosley Radio Corp.;: Dual Ten Lowboy Ch= 170 [Radio] ID = 827030 125x187
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Ten Lowboy Ch= 170, Crosley Radio Corp.; Cincinnati (OH):
By courtesy of 'antiqueradios.com'! / extract of ID = 538148

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 58 56 58 58 56 56 56 2A5 2A5 80
Main principle Superheterodyne (common); ZF/IF 181.5 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dual Ten Lowboy Ch= 170 - Crosley Radio Corp.;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 24.5 x 40.125 x 11.75 inch / 622 x 1019 x 298 mm
Notes Crosley Dual Ten LowBoy 170;
Tone & static control.
Price in first year of sale 66.00 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
Mentioned in The Crosley Broadcaster Volume 12
Literature/Schematics (1) - - Manufacturers Literature (Crosley Service Supplement Index, Suppl. 62)
