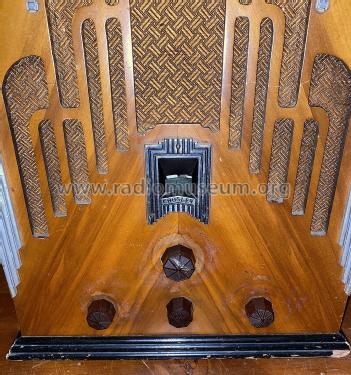

Dual Seventy (70) Ch= 179 Early - Empire style

Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 134870) Radio

Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 134871) Radio
Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 379492) Radio Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 1358404) Radio
Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 1358405) Radio Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 1411914) Radio
Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 1411917) Radio Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 1411918) Radio
Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 1411919) Radio Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 1597566) Radio
Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 1718157) Radio Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 1718158) Radio
Use red slider bar for more.
Dual Seventy Ch= 179; Crosley Radio Corp.; (ID = 379492) Radio
Crosley Radio Corp.;: Dual Seventy Ch= 179 [Radio] ID = 379492 487x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Seventy (70) Ch= 179 Early - Empire style, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 58 58 58 56 56 2A5 80
Main principle Superhet with RF-stage; ZF/IF 181.5 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW), Police, sometimes also early TV (75-200m).
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dual Seventy Ch= 179 [Early - Empire style] - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 13.75 x 16.875 x 8.25 inch / 349 x 429 x 210 mm
Notes

This Crosley model has the same chassis as the Crosley model Dual Seventy Lowboy.

There is also a later Tombstone table model.

External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (2) - - Manufacturers Literature (Crosley Service Supplement Index, Suppl. 76)
Literature/Schematics (3) Cathedral & Tombstone Radios (page 83.)

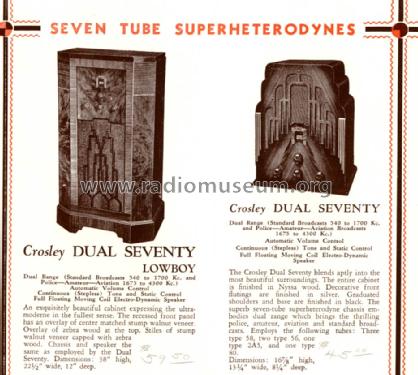

Literature/Schematics (4) Crosley Folder Season 1933/34.
